Rikta -Esmil 2A -03 Low Level Laser Therapy Red IR laser magnetic field TENS + Blue light New professional model

Rikta -Esmil 2A -03 Low Level Laser Therapy   Red IR laser magnetic field  TENS  + Blue light  New professional model
Product Code :503
Availability :In Stock
  • $1,345.00

Free Shipping

Shipping time 12-14 days.

Ask a question


                                Shipping only to European countries by ground delivery

 Available delivery to

Austria, Belgium, Denmark, Germany, Greece, Spain, Italy, Netherlands, Portugal, Serbia, Slovakia, Slovenia, Finland, France, Croatia, Norway, Finland, Sweden, Switzerland, Hungary, Czech Republic

Delivery time is about 2 weeks.

Sending from a warehouse in Europe.     No customs fees for buyers in Europe.

We do not ship to the USA, Canada,  and other countries. The device is not accepted for air delivery due to the presence of built-in batteries.




                                                                          RIKTA-ESMIL (2A)-03

is a new professional model from the RIKTA-ESMIL family of portable laser therapeutic devices.


             USER and OPERTING MANUALS  for Rikta Esmil 2A-03 IN RUSSIAN ONLY

                          We will send you  English laser therapy protocols in PDF










RIKTA-ESMIL (2A)-03 is a new professional model from the RIKTA-ESMIL family of portable laser therapeutic devices.

Its difference from the portable models of previous generations is the increased power of laser radiation (45 W per pulse) and the presence of an additional factor - blue light.TENS mode








Portable device for laser therapy. It has increased power, has 6 healing factors.


Pulsed infrared laser radiation

Pulsating broadband infrared radiation

Pulsating red light

Pulsating blue light

Permanent magnetic field

Transcutaneous electrical nerve stimulation (electrotherapy) TENS therapy






             Pulsating red light                                                                    Pulsating blue light


Suitable for professional and home use.

The device is used for muscle pain, injuries, contractures, joint diseases and other chronic ailments.

The technology of neuroadaptive transcutaneous electrical stimulation RIKTA-TENS in combination with a powerful laser effect allows you to achieve a quick analgesic effect.


The principle of operation of the laser therapy device RIKTA-ESMIL (2a)-03 is concluded in a multiwave combination of radiation:

infrared radiation;

therapeutic laser;

red and blue light;

a magnetic field.

This combination is more effective than conventional laser therapy.

The use of the device has no age restrictions, it can be used for children from birth and for the elderly. It is safe for doctor and patient.

After the therapy, blood circulation and metabolic processes in tissues improve, hypoxia decreases, and inflammatory processes stop.






TECHNICAL SPECSIFICATION


Laser radiation:

905 nm
Broadband infrared radiation:874 nm
Visible red light radiation:640nm
Visible blue light radiation:470nm
Laser radiation peak pulse power:50±5
Laser pulse duration:110±20 ns
Broadband infrared radiation average power:100 mW
Red light average power:50mW
Blue light average power:150mW
Radiation aperture:4±0,4 cm²
Magnetic induction:35±10 mT
Overall dimensions:210x80x70 mm
Net weight:700 g

for TENS mode

Maximum amplitude of output voltage pulses on metal electrodes, V, no more than                                           0...500


Pulse duration at maximum amplitude at 0.5 level, ms, no more than                                                                                    100

Pulse frequency, Hz, no less than                                       0.1

Pulse energy on 500 Ohm load, mJ, no more than             300

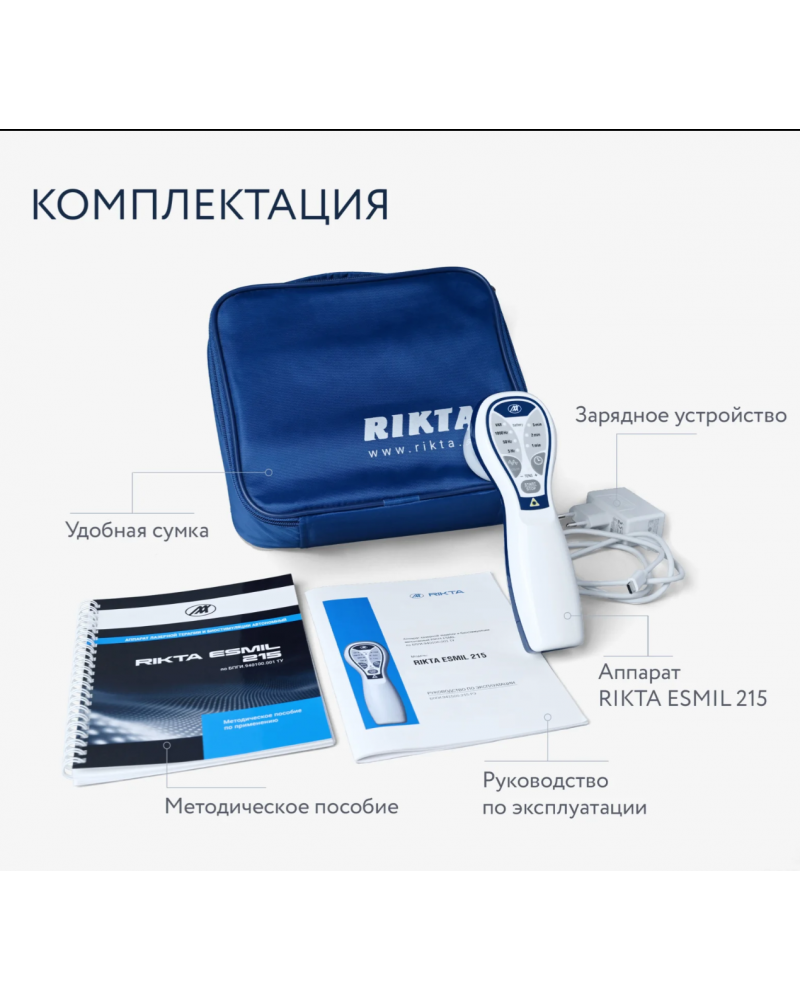

COMPLETE EQUIPMENT


Device for laser magnetic-infrared therapy RIKTA ESMIL 2A-03 - 1 pc.

Network adapter with power cord - 1 pc.

Convenient bag for storing and transporting the device and accessories - 1 pc.

Detailed russian  manual on the use of the device - 1 pc.

Passport and warranty card - 1 pc.


Other parameters:

Power supply of the device — from an internal power source (battery)  voltage, V   3.7

capacity, mA•hour     1800

Output voltage of the network adapter for charging the batteryV5

Input voltage of the charger   110…240 V/50 Hz



Front panel of device in english as in photo.

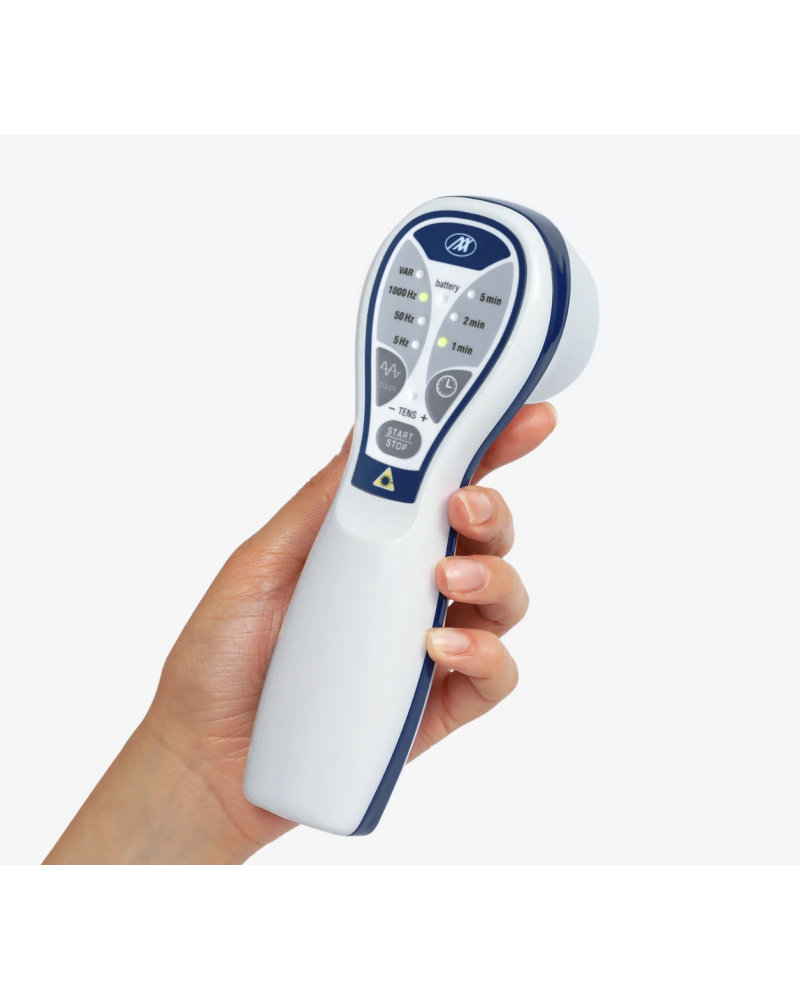

              On the image:


Apparatus on the front side and on the side of the radiating window, additionally an optical attachment*.

1. laser radiation frequency indicators: 5 Hz - 5 Hz, 50 Hz - 50 Hz, 1000 Hz -1000 Hz, VAR - variable frequency;

2.before starting the procedure: button for setting the button for setting the frequency of laser radiation / during the procedure: switching the light - red / blue (when TENS is not working) / decreasing the intensity of TENS (when TENS is working);

3."TENS" - TENS therapy mode indicator;

4.turning the device on/off (long press) or starting/stopping the procedure (short press);

5.symbol for the presence of laser radiation

6."battery" - battery charging indicator; button for setting the duration of the treatment procedure / during the operation of the device - to increase the voltage on the electrodes;

7.indicators of the duration of the treatment procedure: 1min - 1 minute, 2 min - 2 minutes, 5 min - 5 minutes;

8.before starting the procedure: button for setting the exposure time of the treatment / during the procedure: increasing the intensity of TENS;

9.connector for connecting the charger;

10.radiating window, the location of the optical attachment;

electrodes;

11.label
