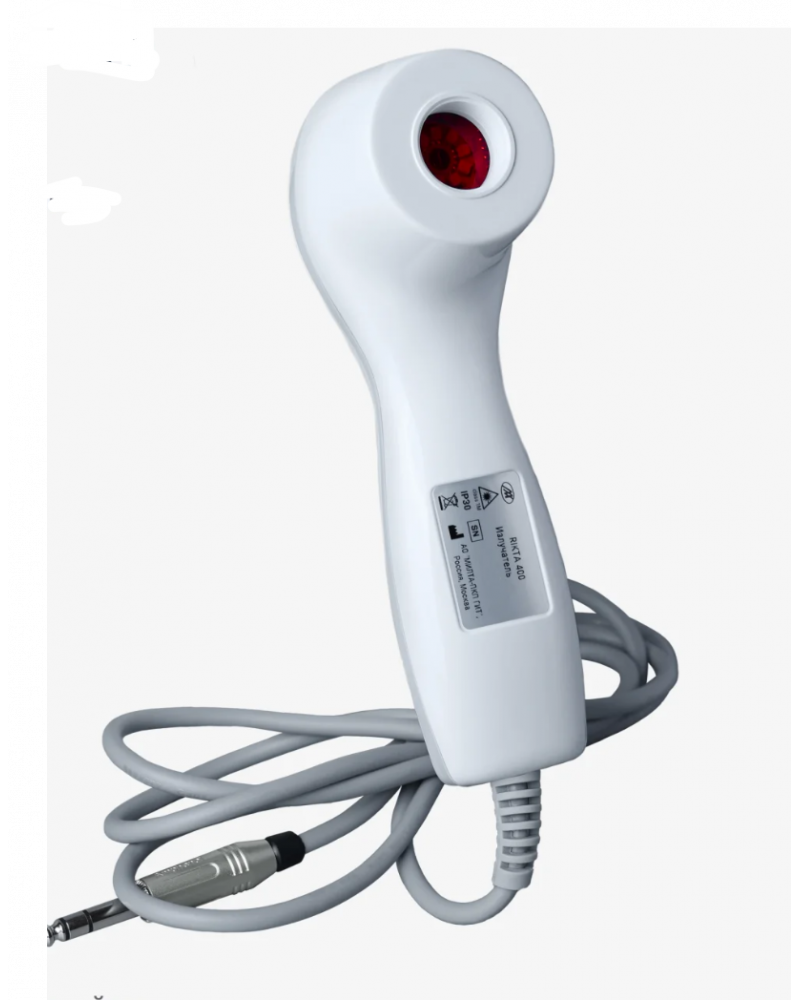

T45 Emitter for RIKTA 400
The T45 is an emitter designed for use with the RIKTA 400 device. The laser pulse power is 45 W.
Suitable for treating children over 9 years of age and patients under 80 years old.
It is possible to purchase an additional T45 emitter and operate the device with two emitters simultaneously.
Therapeutic Factors:
Pulsed near-infrared laser radiation;
Pulsed non-coherent infrared radiation;
Pulsed red light;
Constant magnetic field.
Technical Specifications
Radiation Wavelength, μm:
Laser: 0.800–0.910
Infrared: 0.850–0.980
Red light: 0.580–0.700
Laser Pulse Power, W
45 ±20%
Average Infrared Radiation Power, mW
100 ±20%
Average Red Light Power, mW
80 ±20%
Magnetic Induction, mT
35 ±10%
Aperture Area, cm²
4 ±0.4
Emitter Dimensions, mm
Max. 195 × 65 × 85
Laser Safety
Class 1M (according to IEC 60825-1)
Protection Rating
IP30 (according to GOST 14254)
Service Life
5 years
